hot dipped galvanized fence panel temporary crowd control barrier

Name: hot dipped galvanized fence panel temporary crowd control barrier
Brand: YMWY
Price: 8 USD

hot dipped galvanized fence panel temporary crowd control barrier Manufactures

Brand Name : YMWY

Model Number : 07

Certification : ISO9001

Place of Origin : Hebei, China

MOQ : 50sets

Price : usd8-usd15

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 per week

Delivery Time : 20-60 days

Packaging Details : pallet

Name : crowd control barrier

material : Hot Dipped Galvanized, stainless steel

Frame pipe : 1.5-2.0mm

Infilled pipe size : 14, 16, 19, 25

Thickness of pipe : 1.2 , 1.5 , 1.8 , 2.0mm

Opening : 50*100,60*120,100*300mm

Surface Treatmen : Electric galvanized then PVC coated

Width : 2.0m, 2.1m, 2.4m, 2.5m

Length : 1.1m，1.2m

height : 0.8-2.0m customized

Contact Now

Product Description

Crowd control barrier are commonly used at many public events. security for special events, parades, festivals, concerts and sporting events.crowd control barrier is ideal where high quality, attractive and durable crowd control is required.

Features:
• Quickly and easy installation and removable
• Cost effective
• Recycle
• Different options on color according to the using environment

hot dipped galvanized fence panel temporary crowd control barrier

Product Specification

Specifications Normal Size
*Panel Size (mm) 914x2400, 1090x2000, 1090x2010, 940x2500
*Frame Tube (mm) 20, 25, 32, 40, 42 OD
*Frame Tube Thickness (mm) 1.2, 1.5, 1.8, 2.0
*Vertical Tube (mm) 12, 14, 16, 20 OD
*Vertical Tube Thickness (mm) 1.0, 1.2, 1.5
*Tube Space (mm) 100, 120, 190, 200
*Surface Treatment Hot dipped galvanized or Powder coated after welded
*Feet:Flat feet, Bridge feet and Tube feet

Material:	carbon steel pipes
Process:	Made through pipe welding then galvanized or powder coated
Application:	public events, exhibitions, festive parties, sporting events, concerts, construction sites and concerts etc public restriction area
Product Features:	Corrosion resistant, age resistant, sunshine proof, weather proof, easy installation and move
Corrosion Form:	Hot dipped galvanized Powder coating
Specification
Frame (O.D)	Infill picket (O.D)	Panel width	Panel height	Pipe Spacing	Feet stype
20mm 25mm 32mm 40mm 42mm 48mm	12mm 14mm 16mm 20mm 25mm	2.0m 2.1m 2.2m 2.4m 2.5m	1.1m 1.2m 1.5m	60mm 100mm 120mm 150mm 190mm 200mm	Flat feet Bridge feet Arched feet

Panel - welded foot

Width :	2.0m, 2.1m, 2.4m, 2.5m
Height:	1.1m
Frame pipe size:	25, 32, 38, 42
Infilled pipe size:	14, 16, 19, 25
Wall thickness:	Frame pipe: 1.5-2.0mm
	Infilled pipe: 0.9-1.5mm

Detail Images

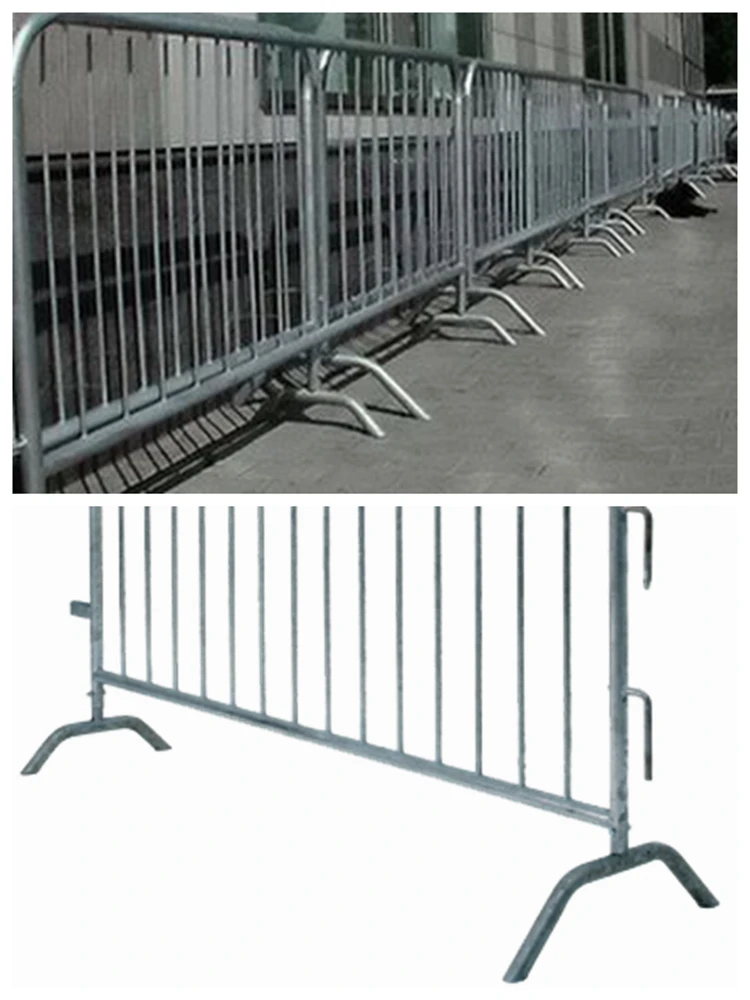

1.Crowd control barrier with bridge type foot

1) barrier with a bridge-style foot, is the best selling crowd control barrier on the market!
2)The bridge-foot design provides maximum stability for the barrier , thus making the product an ideal choice for use on grass, soft or uneven surfaces.
3)The Bridge Foot provides the best resistance to pushing by crowds - so if you are planning a parade, rally or concert, choose this for your sensitive crowd control needs.

hot dipped galvanized fence panel temporary crowd control barrier

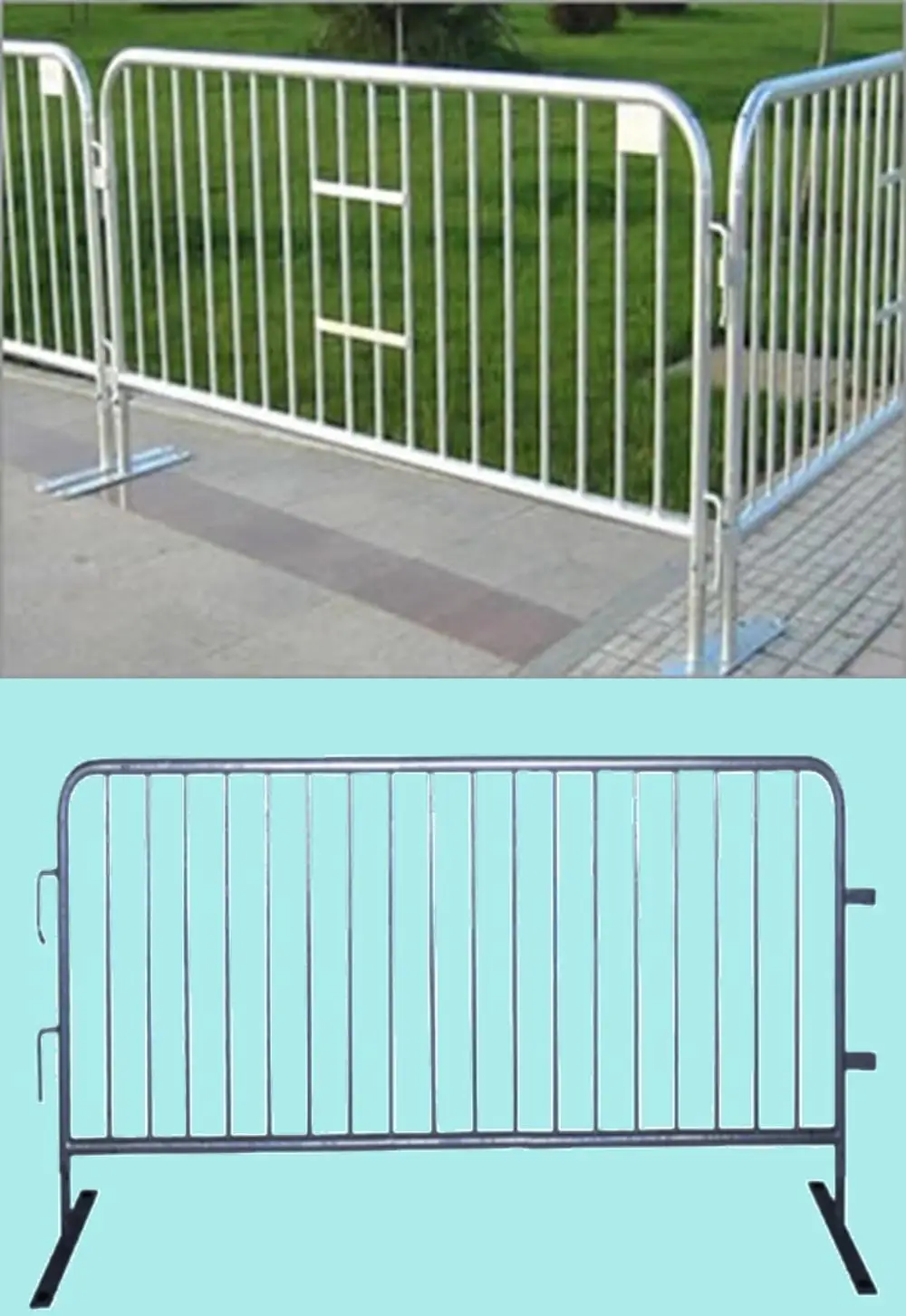

2.Crowd control barrier with flat type foot

1)crowd control barrier with a flat-style foot, is the ideal choice at special events or venues that require funneling crowds or traffic in parallel lines.
2)The flat-foot design minimizes the tripping hazard and vehicle tires roll easily over the foot without damage to the barricade.
3)The flat foot distributes weight evenly and rubber grommets provide added protection for sensitive floors. Two holes in each foot allows it to be anchored to the ground.

hot dipped galvanized fence panel temporary crowd control barrier

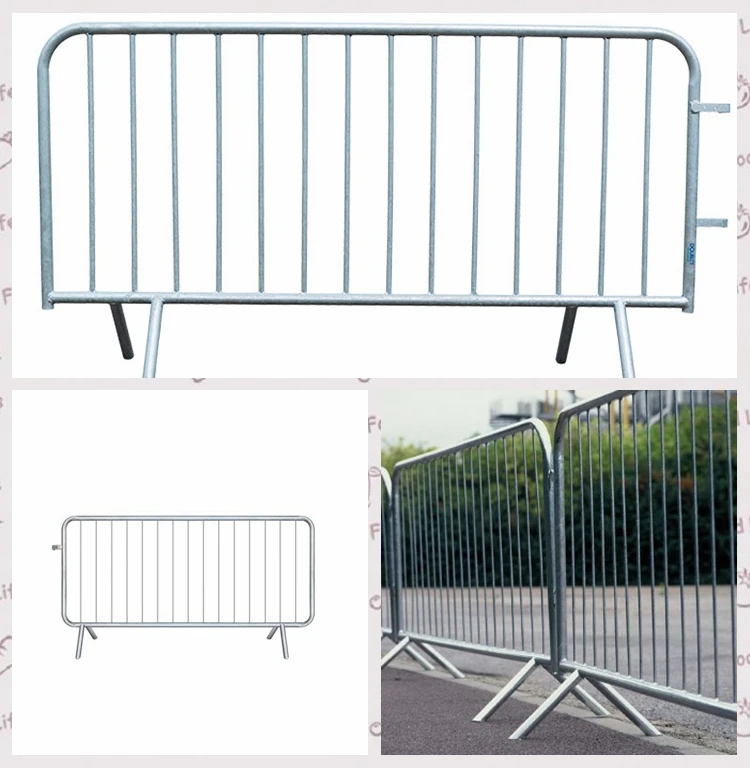

3.Crowd control barrier with V type foot

hot dipped galvanized fence panel temporary crowd control barrier

Fence application

Application: sports stadium, business and industry, factories and workshops, public buildings, construction places, swimming pools

Packing and Delivery

hot dipped galvanized fence panel temporary crowd control barrier

Company profile

Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.
